Replacement Glass Top for Samsung Stove: A Complete DIY Guide
Learn a safe, step-by-step method to replace a cracked glass top on Samsung stoves. This Stove Recipe Hub guide covers tools, safety tips, and proper reassembly.
You will replace a cracked replacement glass top for samsung stove by installing a model-specific panel, then reassembling and testing. Verify compatibility, gather tools, safely remove the old glass top, install the new panel, and test burners. Expect 60-120 minutes, and ensure you disconnect power before starting. Follow all safety precautions.
Understanding replacement glass top for samsung stove
Replacing a cracked replacement glass top for samsung stove is a repair task many home cooks can tackle with the right part and approach. Start by confirming you have the exact panel that matches your model’s cutouts, thickness, and mounting pattern. Samsung uses specific glass sizes and hole layouts, and using the wrong part can lead to cracks, poor sealing, or safety risks. According to Stove Recipe Hub, model-specific compatibility is non-negotiable; a misfit can affect heat distribution, seal integrity, and warranty coverage. To determine fit, locate your model number (often found on a label inside the oven cavity or on the backside of the control panel) and measure the surface width, depth, and burner cutouts. When in doubt, consult the supplier’s compatibility chart or contact Samsung support. With the right top, the stove returns to a smooth, easy-to-clean surface and safe operation.
How to determine compatibility and order the right glass top
Before you order, establish exactly which glass top your Samsung stove requires. Start with the model number and cross-check it against the replacement part supplier’s compatibility list. Measure the overall width and depth of the existing top, and count the number and position of burner cutouts. Confirm the glass thickness and the presence or absence of a gasket or mounting frame. If you see a gasket requirement, note its size and shape so you can replace it during installation. Keep in mind that some Samsung models use a full-frontal frame while others rely on a modular mount; choosing the wrong style will make installation difficult or unsafe. When you order, request a genuine Samsung part or a reputable aftermarket option with a compatible warranty. If you’re uncertain, seek a professional opinion, and read reviews about fit and finish to avoid surprises.
Preparing for the replacement: safety and model checks
Safety first. Disconnect power at the wall outlet or breaker before touching the stove. Remove all cookware and wipe the surrounding area to prevent slips. Gather your tools and the replacement glass top, then lay a soft mat or towel to catch any accidental drops. Review the installation instructions for your exact model, and note any screws or brackets you’ll need to loosen. If your model uses a delicate frame or gasket, handle it with care to prevent cracks. Finally, ensure you have adequate lighting and a clear workspace; working in cramped spaces increases the risk of dropping the glass or injuring yourself. This upfront prep minimizes surprises during the installation.
Common mistakes and troubleshooting during replacement
Two of the most common mistakes are using the wrong glass top and overtightening mounting screws, which can crack the new panel. Always verify fit before securing screws, and loosely position the top to test alignment. If you see gaps around the edges after fitting, re-check the screw pattern and ensure the frame is fully seated. Don’t ignore heat shields or seals; a missing gasket can allow heat to escape and damage the surface. If the surface fogs or shows irregularities after installation, power down and re-check the screws and alignment. If you suspect a defective pane, contact the supplier promptly for a replacement rather than improvising. The Stove Recipe Hub Team emphasizes patience and methodical checks to avoid costly mistakes.
Aftercare and maintenance tips for your new glass top
After installing the new glass top, give it time to settle and cool before cooking on it. Clean the surface with a soft cloth and a non-abrasive cleaner to maintain its clarity and resist staining. Use heat-safe trivets or cookware to avoid impact or sudden temperature changes that can crack the glass. Regular checkups of the mounting frame and screws prevent loosening or rattling. Avoid slamming pots on the surface and don’t slide heavy or sharp objects across it. With proper care, your replacement glass top for samsung stove can stay pristine for years. The Stove Recipe Hub team recommends keeping a maintenance log and scheduling periodic checks for frame integrity and gasket condition.
Authority sources
- U.S. Consumer Product Safety Commission (CPSC): https://www.cpsc.gov
- Occupational Safety and Health Administration (OSHA): https://www.osha.gov
- National Fire Protection Association (NFPA): https://www.nfpa.org
Tools & Materials
- Replacement glass top for samsung stove (model-specific)(Ensure you order exact size and cutout dimensions for your model)
- Safety glasses(Eye protection during removal and installation)
- Heat-resistant gloves(Protect hands when handling components; ensure the surface is cool)
- Phillips head screwdriver(For removing mounting screws)
- Measuring tape(Confirm dimensions and cutouts before ordering)
- Soft cloth or microfiber(Clean surfaces and prevent scratches)
- Isopropyl alcohol or glass cleaner(Clean after installation)
- Marker or painter's tape(Label screws and components)

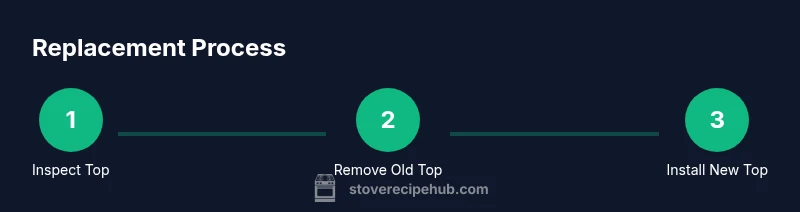

Steps
Estimated time: 60-120 minutes
- 1
Disconnect power and secure the workspace
Power down at the outlet or breaker and unplug the stove if accessible. Clear cookware and debris, then lay a soft mat to cushion any accidental drops. Take a photo of screw placements or wiring before you touch anything.
Tip: Label and photograph every connection to simplify reassembly. - 2
Remove mounting screws around the perimeter
Locate all screws securing the frame around the glass top and carefully remove them. Keep screws organized in labeled containers to prevent mix-ups during reassembly. Do not force any fasteners if they resist.
Tip: Use the maker's marks on the frame to keep screw positions consistent. - 3
Lift and remove the damaged glass top
With a helper if needed, lift the glass panel straight up and away from the frame. Support the edge to avoid bending or cracking. Place the old top on a soft surface to prevent further damage.
Tip: Never grip the glass by the middle; support the edges to avoid bending. - 4
Inspect frame and gasket; clean mounting area
Check the frame for cracks, warping, or corrosion. Remove any old gasket and clean the contact surfaces with isopropyl alcohol. Ensure the area is dry and free of debris before installing the new top.
Tip: Replace a damaged gasket to maintain a proper seal. - 5
Dry-fit the new glass top to verify alignment
Place the new panel on the frame without securing it to confirm alignment with burner cutouts and screw holes. Adjust as needed so edges sit flat and evenly.
Tip: Double-check cutouts line up with burners before final mounting. - 6
Secure the new glass top with mounting screws
With assistance, lower the top into place and begin threading screws in a crisscross pattern. Tighten gradually to avoid stress cracks, stopping when the frame sits flush.
Tip: Tighten gradually and alternate corners to keep tension even. - 7
Reconnect power and test burners on low heat
Restore power and turn on burners at the lowest setting to verify position and seal. Listen for unusual noises or rattling, and check for any heat leaking at the edges.
Tip: If you hear cracking, power down and inspect mounting again. - 8
Final safety check and cleanup
Power down again, wipe any fingerprints, and ensure all tools and packaging are removed. Re-check the screws and gasket after the first few uses, and store spare hardware for future maintenance.
Tip: Keep a small parts container for future replacements.
Common Questions
Can I replace the glass top myself?
Yes, you can replace the glass top yourself if you have the correct model-specific part and feel comfortable with basic appliance repairs. Follow the manufacturer’s instructions closely and work slowly to avoid damage. If you’re unsure, consider hiring a professional.
Yes, you can do it yourself if you have the right part and basic repair skills. Follow the instructions closely, and don’t hesitate to hire a pro if you’re unsure.
How do I know the replacement glass top is compatible with my Samsung stove?
Check the model number on the stove and compare it with the replacement part provider’s compatibility list. Confirm the cutout pattern, thickness, and gasket requirements. When in doubt, contact the supplier for confirmation before purchasing.
Check the model number and fit; if in doubt, contact the supplier to confirm compatibility before buying.
Is it safe to operate the stove with a cracked glass top?
No. A cracked glass top can shatter under heat, posing serious injury risks and potential gas or electrical hazards. Replace the panel before using the stove again.
No. A cracked top can shatter and cause injuries; replace it before using the stove.
Will replacement affect warranty?
Replacing the glass top can affect warranty coverage depending on the model and retailer terms. Check Samsung’s warranty policy and the seller’s terms before purchasing or installing.
Warranty depends on your model and retailer; check policy before replacing.
What should I do if the glass top alignment isn’t correct after installation?
Power down and re-check the screw pattern and frame seating. Ensure the top sits flush and that the burner cutouts align with the burners. If misaligned, remove and reinsert with proper steps.
If alignment is off, power down and review mounting and cutouts; re-install carefully.
How should I dispose of the damaged glass top?
Wrap the broken panel in thick material and follow local hazardous-waste guidelines. Do not throw loose shards in regular trash; place them in a sturdy container.
Wrap the broken glass and follow local disposal rules; don’t put shards in regular trash.
Watch Video
Top Takeaways
- Verify model compatibility before purchasing the top.
- Disconnect power and keep the working area safe.
- Align cutouts carefully to prevent heat leaks.
- Tighten mounting screws evenly to avoid stress cracks.
- Use proper cleaners and protection to maintain the surface.
