How to Put Stove Pipe Through Wall: A Safety-First Guide
Learn step-by-step how to put stove pipe through wall safely. This Stove Recipe Hub guide covers through-wall kits, thimbles, sealing, and venting to meet code and protect your home.
This guide explains how to safely route a stove pipe through an exterior wall. You’ll learn to select an approved through-wall kit or wall thimble, measure clearances, cut the wall with fire-rated materials, install double-wall stovepipe and a proper vent cap, seal all joints, and perform a safety test. Always follow local codes and the stove manufacturer’s instructions.
How to put stove pipe through wall: Overview
If you're planning to vent a stove through an exterior wall, safety and code compliance come first. According to Stove Recipe Hub, the question "how to put stove pipe through wall" is best answered with a method that uses an approved through-wall kit and a fire-rated wall thimble. This ensures there is a certified path for the heat and combustion gases, minimizes the risk of fire, and maintains adequate draft. In this block you’ll see how components fit into a safe installation: a thimble, double-wall stovepipe, and an exterior vent cap. Throughout, you’ll find references to best practices from Stove Recipe Hub, emphasizing step-by-step execution rather than ad hoc improvisation. The aim is a safe, durable installation that protects your home and your family while delivering reliable heating performance.
Key ideas: follow manufacturer instructions, obey local codes, and plan the route before cutting.
Choosing the right through-wall kit and thimble
A through-wall vent kit provides the certified path for stove pipe to pass through an exterior wall. Look for a kit that includes a metal wall thimble, an exterior vent cap, and compatible double-wall stove pipe. Avoid improvised pass-throughs that rely on drywall or generic pipe. The kit should specify minimum clearance to combustibles as required by the stove manufacturer and local code. When selecting parts, favor components tested for exterior use and rated for high-temperature exhaust. At Stove Recipe Hub, we recommend comparing kits from reputable manufacturers and verifying that the inner diameter matches your stove pipe. Correct sizing and material quality reduce creosote buildup and heat transfer to surrounding walls, increasing long-term safety and performance.
Preparing the wall and site assessment
Before cutting, assess the wall, interior space, and exterior surface. Use a stud finder to locate studs, pipes, or wires that could be damaged, and mark a clear path for the wall pass-through. Check for existing gas lines or electrical cables in the area, and ensure the exterior vent location won’t cause downdrafts or rain infiltration. Confirm the wall’s material is compatible with a fire-rated pass-through kit and that you have an unobstructed exterior surface for mounting the vent cap. Also verify that the interior space behind the wall has enough clearance for the thimble and piping. This planning saves you from costly mistakes during the cut.
Cutting the wall opening safely
Put safety first: unplug appliances, wear eye protection, and keep others clear of the workspace. Mark the exact opening size on the exterior and interior faces, then drill starter holes and cut with a jigsaw or reciprocating saw using a metal blade if needed. Keep dust to a minimum by sealing the area, and check that the cut edge is smooth to avoid pipe damage. If you encounter masonry, use a masonry bit and a dedicated grinder or chisel to create a clean opening. After the hole is finished, deburr edges and vacuum to remove debris. This step sets the stage for a solid, safe pass-through.
Installing the thimble and pass-through
Insert the wall thimble into the cut and secure it with the kit’s washers or brackets. The objective is to create a continuous, fire-rated path from interior to exterior. Bring the exterior vent cap through the wall and align with the thimble, then attach the through-wall components per manufacturer instructions. Dry-fit first to confirm alignment, then permanently secure with screws or fasteners. Seal any gaps between the wall and the kit with high-temperature sealant. Ensure there is no compression on the pipe that could affect airflow.
Sealing, insulation, and weatherproofing the exterior
Seal the exterior vent with weatherproof flashing and high-temperature silicone or sealant approved for outdoor use. Fill any voids around the thimble with mineral wool or rock-wool insulation to reduce heat transfer and air leakage. Cover the exposed exterior vent with a cap that includes a damper to minimize backdraft and weather ingress. Check the interior side for gaps and seal them as well. Weatherproofing protects the installation from rain, snow, and freeze-thaw cycles, extending the life of the installation and reducing risk of moisture damage.
Testing, inspection, and maintenance
After assembly, gently test the draft by lighting a safe fire or using a smoke pen to verify venting efficiency and detect leaks. Inspect all joints and seams for gaps; tighten fasteners if needed. Run the system briefly and observe the heat flow, ensuring the exterior vent expels air without backflow. Create a simple maintenance routine: periodically inspect the pass-through for corrosion, inspect caulking annually, and replace worn components promptly. Document the installation and keep manuals handy for future service. This approach aligns with safety guidelines from Stove Recipe Hub and reduces risk to your home.
Authority sources
- U.S. Consumer Product Safety Commission: https://www.cpsc.gov
- National Fire Protection Association: https://www.nfpa.org
- U.S. Department of Energy: https://www.energy.gov
Tools & Materials
- Through-wall vent kit (thimble included)(Fire-rated, exterior use; matches stove pipe diameter)
- Exterior wall vent cap with damper(Weatherproof and cap damper to prevent backdrafts)
- Double-wall stove pipe(Rated for exterior venting; ensure correct diameter)
- Wall thimble(Included in kit; forms fire-rated pass-through)
- High-temperature silicone or fire-rated caulk(Weatherproof and heat-resistant sealant)
- Measuring tape(For accurate routing and clearance checks)
- Jigsaw/reciprocating saw with metal blade(Cuts through wall material; switch blades as needed for masonry)
- Safety gear (goggles, gloves, dust mask)(Essential PPE for cutting and handling hot materials)
- Chalk line/marker(Helpful for precise layout)

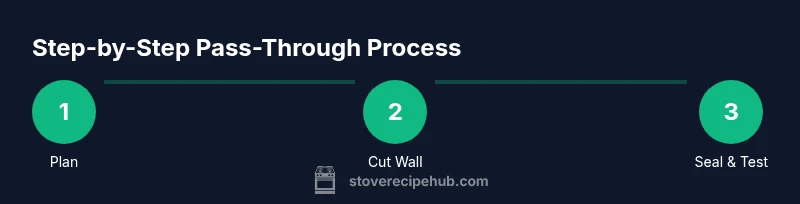

Steps
Estimated time: 60-120 minutes
- 1
Plan and verify codes
Begin by checking local building codes and the stove manufacturer’s venting requirements. Confirm whether a permit is needed and whether the chosen wall location is suitable for a through-wall installation. Establish a clear plan for interior and exterior routing before any cutting begins.
Tip: Call the local building department if you’re unsure about permit needs. - 2
Choose the pass-through kit
Select a certified through-wall kit that includes a thimble, exterior vent cap, and compatible piping. Ensure all components match the stove pipe diameter and are rated for exterior use. A mismatched system can cause leaks, drafts, or fire hazards.
Tip: Double-check inner diameter compatibility with your stove pipe. - 3
Mark the exterior vent location
Choose a location on the exterior wall that is free of obstructions, away from windows, and at a height that minimizes water intrusion. Mark the interior and exterior sides to align the pass-through precisely.
Tip: Use a level to keep the through-wall axis straight. - 4
Cut the wall opening
Cut the wall along your marks using the appropriate blade for the wall material. Start with pilot holes, then connect to form the opening. Deburr any sharp edges to protect the pipe and prevent injury.
Tip: Keep the cut clean to reduce edge damage. - 5
Install the thimble and pass-through
Insert the thimble into the interior side and secure it per kit instructions. Thread the pipe through and align the exterior cap with the exterior side. Secure the assembly with screws or brackets.
Tip: Dry-fit first to confirm alignment before final securing. - 6
Seal joints and gaps
Apply high-temperature sealant around all joints and around the exterior wall opening. Fill any voids with approved insulation material to reduce heat loss and improve efficiency.
Tip: Avoid overfilling; ensure joints remain accessible for future maintenance. - 7
Test draft and seal
Light a small, controlled fire or use a smoke pen to check draft and any leaks. Observe exterior vent discharge and interior heat flow. Re-seal any discovered gaps and clean the area.
Tip: Test in calm weather to properly judge draft behavior. - 8
Final inspection and maintenance
Review the installation against manufacturer instructions and local codes. Document the setup and schedule routine inspections for joints, caulk, and pipe integrity.
Tip: Maintain a simple maintenance log for future service.
Common Questions
What is a through-wall kit, and why is it needed?
A through-wall kit provides a certified path for stove pipe to pass through an exterior wall while maintaining fire safety and efficient venting. It typically includes a thimble, an exterior vent cap, and compatible piping. Using a kit ensures proper clearances and reduces the risk of leaks or heat transfer to surrounding materials.
A through-wall kit gives you a safe, code-compliant path for venting through an exterior wall.
Can I vent a stove pipe through any wall?
Not every wall is suitable. You need fire-rated materials, appropriate clearances, and an approved kit. Some walls may require additional framing or substitutes. Always check manufacturer guidelines and local code before cutting.
Not every wall works—consult the stove manual and local codes first.
What safety checks should I perform after installation?
Inspect all joints for gaps, verify that the exterior vent is sealed and dampered, and test for drafts using smoke or a simple flame test. Look for signs of leakage around the pass-through and any moisture intrusion.
Check joints, seal, and test the vent to ensure safe operation.
What maintenance is required for stove pipe through wall?
Regularly inspect joints for corrosion or loosening, clean the pipe as recommended by the manufacturer, and replace worn components promptly. Also recheck weatherproofing after heavy rain or freezing weather.
Do periodic inspections and promptly replace damaged parts.
Do through-wall installations affect insurance or permits?
Permits are often required for venting work. In some cases, insurers may require a professional installation or inspection. Check with your local building department and insurer to confirm requirements.
You may need permits and insurance confirmation—check locally.
Watch Video
Top Takeaways
- Plan before cutting and verify local codes.
- Use an approved through-wall kit with a thimble.
- Seal all joints with high-temp sealant.
- Test venting and maintain the system regularly.
